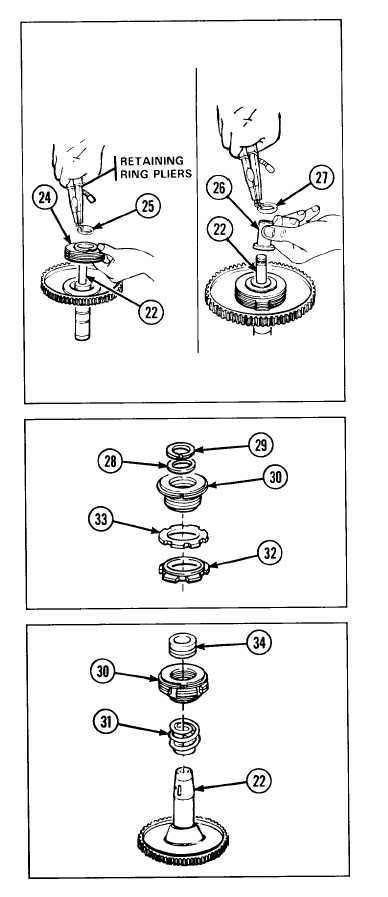

Install clutch assembly (24) on shoul-
dered brake shaft (22) and using retain-
ing ring pliers, secure with new retaining
ring (25).
Install sleeve bearing (26) on shouldered
brake shaft (22) and using retaining ring
pliers, secure with new retaining ring
(27).
Install new preformed packing (28) and
new packing retainer (29) in machine
brake bushing (30).
Install slip clutch spring (31), adjusting
nut (32), jam nut (33), piston break
bushing (34), and machine break bushing
(30) with attached parts on shouldered
brake shaft (22).
