CHAPTER 4: MAINTENANCE OF MAIN ENGINE FUEL, AIR INTAKE,
TM 9-2350-256-20
AND EXHAUST SYSTEMS
4-11 REPLACE/ADJUST ENGINE FUEL MANUAL SHUTOFF CONTROL-Continued
b. INSTALLATION
Install controls in reverse order using illustration as guide.

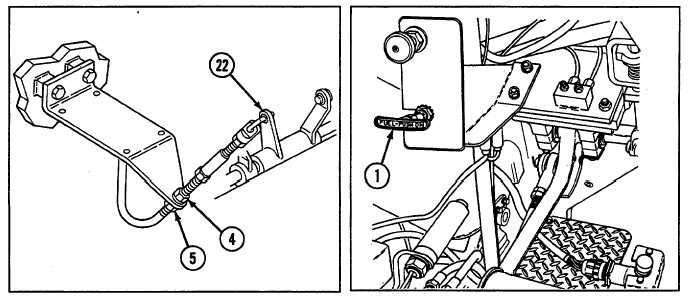

c. ADJUSTMENT
1
Loosen nuts (4 and 5).
2
Pull fuel shutoff handle (1). Check that fuel shutoff control (22) turns to complete "OFF" position. Tighten nut (5).
3
Push fuel shutoff handle (1). Check that fuel shutoff control (22) turns to "ON" position. Tighten nut (4).
4
Start engine (refer to TM 9-2350-256-10).
5
Check operation of engine fuel manual shutoff control. If control does not shut engine off when operated, repeat
adjustment.
NOTE
Follow-on maintenance:
Close fuel tank drain valves and fill fuel tank or turn on fuel shutoff
valves (refer to TM 9-2350-25610)
