MANUAL CONTROL VALVE AND FITTINGS REPLACEMENT -- CONTINUED
0569 00
Installation--Continued
11. Install pipe tee (8) and pipe locknut (11) in manual control valve (3). Tighten pipe locknut (11).
12. Install pipe elbow (10) and pipe locknut (9) in pipe tee (8). Tighten pipe locknut (9).
13. Install pipe nipple (7) in pipe tee (8).
14. Install pipe elbow (6) on pipe nipple (7).
15. Install pipe elbow (5) and pipe locknut (4) in manual control valve (3). Tighten pipe locknut (4).
16. Install pipe elbow (2) and pipe locknut (1) in manual control valve (3). Tighten pipe locknut (1).

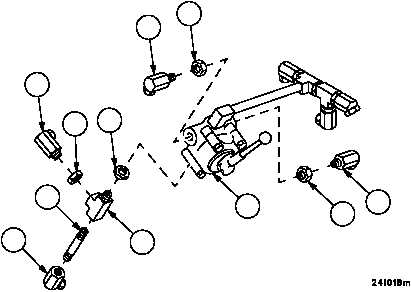

Figure 315
6
7
8
9
10
11
2
1
3
4
5
NOTE
FOLLOW--ON MAINTENANCE:
Install hydraulic lines and fittings on manual control valve
(WP 0566 00)
Close right engine access grille door
(TM 9--2350--292--10)
Close defuel access door
(TM 9--2350--292--10)
END OF TASK
