TM-9-2350-256-10 Carrier Cargo Tracked 6-Ton M548A1 (2350-01-096-9356) Manual
Page Navigation
94

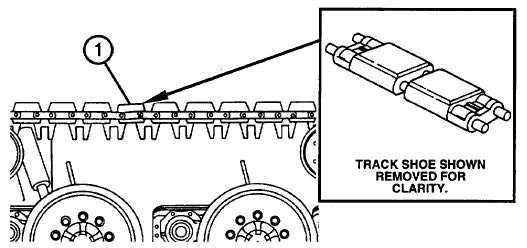

TM 9-2350-256-10 Table 2-1. PMCS-Continued. Location Crewmember Not Fully Item Item to Mission No. Interval Check/ Procedure Capable if: Service 40 After Track Crew Shoes (Right and NOTE Left) When track shoe (1) appears out of line, it indicates a dead shoe or damaged track pin bushing. a. Check for dead shoes a. On one side of between track support vehicle three or rollers. more dead track shoes or any broken pin. b. Check track shoes for breaks, cracks, or broken pin. NOTE When replacing individual track shoes, the rubber pads should be approximately same height as adjacent pads. This may require removing new pads and installing used pads of equal height. 2-78
