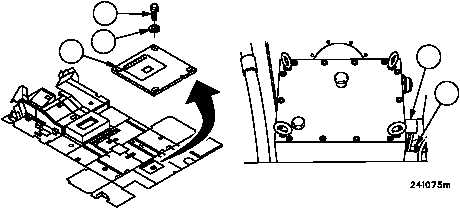

TM 9--2350--292--100045 00--2PREPARING HYDRAULIC SYSTEM FOR OPERATION -- CONTINUED0045 00EMERGENCY ENGAGEMENT/DISENGAGEMENT OF THE PTO CLUTCHWARNINGManual clutch lock lever is under heavy tension. Maintain tension on manual lock lever at alltimes while disengaging/engaging PTO clutch to avoid a rapid manual lock lever rotation.Failure to comply may result in injury to personnel.NOTEThe PTO clutch is equipped with a manual clutch lock in case the PTO CLUTCH toggleswitch or associated wiring malfunctions.For proper operation of engine RPM limit and hyraulic oil cooling, make sure PTO clutchswitch is ON when operating with the PTO manually engaged.Engagement1. Shut down main engine (WP 0019 00).2. Remove four bolts (1) with captive lockwashers, four flat washers (2) and remove floor plate (3) overelectromagnetic clutch.3. Pull manual clutch lock lever knob (4) and rotate manual clutch lock lever (5) 180° counterclockwise to engageelectromagnetic clutch.4. Install floor plate (3) with four bolts (1) with captive lockwashers and four flat washers (2).5. Start main engine (WP 0012 00) and operate hydraulics to perform mission.Disengagement1. Shut down main engine (WP 0019 00).2. Remove four bolts (1) with captive lockwashers, four flat washers (2) and floor plate (3).3. Pull manual clutch lock lever knob (4) and rotate manual clutch lock lever (5) 180° clockwise to disengageelectromagnetic clutch.4. Install floor plate (3) with four bolts (1) with captive lockwashers and four flat washers (2).5. Notify unit maintenance.21345
