162

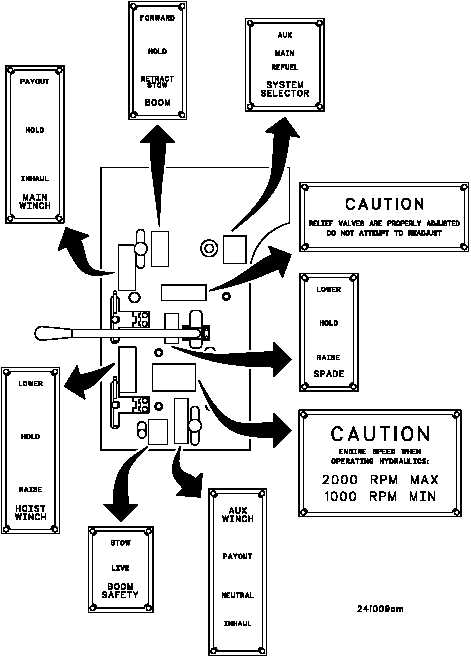

TM 9--2350--292--10 0052 00--1 DECALS AND INSTRUCTION PLATES. 0052 00 THIS WORK PACKAGE COVERS: Hydraulic Control Panel, Fuel Control Valves, Driver’s Area, Air Filter Housing, Refuel/Defuel Compartment, AN/ VIC Intercommunication System (VIS) HYDRAULIC CONTROL VALVE PANEL
