TM 9--2350--292--10
0101 00--91
PREVENTIVE MAINTENANCE CHECKS AND SERVICES INCLUDING
LUBRICATION INSTRUCTIONS -- CONTINUED
0101 00
TABLE 6 LUBRICATION INSTRUCTIONS -- CONTINUED

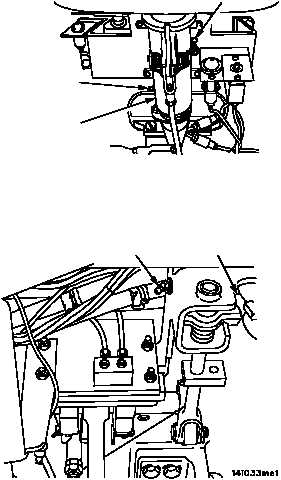

20. STEERING CONTROL ASSEMBLY
Lubricate steering control assembly with GAA through two fittings
until grease is visible. Wipe excess grease with wiping rag (item 45,
WP 0130 00).
21. SERVICE BRAKE SHAFT
Lubricate shaft with GAA through two fittings (one fitting on each end
of shaft) until grease is visible. Wipe excess grease with wiping rag
(item 45, WP 0130 00).
FITTING
FITTING
STEERING
CONTROL
ASSEMBLY
FITTING
SERVICE BRAKE
SHAFT
