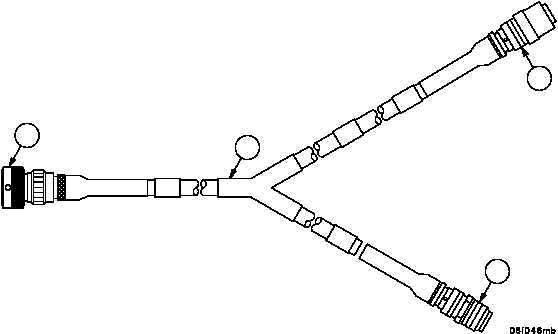

TM 9--2350--292--20--1 0293 00--4 WIRING HARNESS 3W132 REPLACEMENT -- CONTINUED 0293 00 Installation--Continued NOTE The following legend identifies attachment points for each connection. 2. Install wiring harness (1) with attaching hardware, at the following attachment points: Item No. 3W132 Connector/Lead/Wire To Connector/Lead/Wire Component Location 4 Connector J1 3W702 Connector P4 Engine Compartment (Left Side) 3 Connector P2 3W143 Connector J2 Engine Compartment (Left Side) 2 Connector P1 Electrical Bulkhead Connector J5 Engine Compartment (Left Front) Figure 105 1 2 4 3 NOTE FOLLOW--ON MAINTENANCE: Connect battery power (WP 0256 00) END OF TASK
