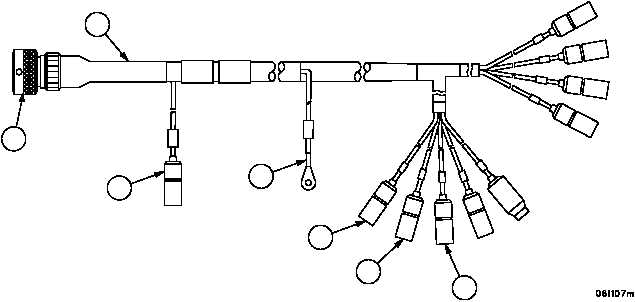

TM 9--2350--292--20--1 0294 00--6 WIRING HARNESS 3W142 REPLACEMENT -- CONTINUED 0294 00 Installation--Continued Item No. 3W142 Connector/Lead/Wire To Connector/Lead/Wire Component Location 7 Wire 23 Left Tail Light Engine Compartment (Left Side) 6 Wire 24 Left Tail Light Engine Compartment (Left Side) 5 Wire 22/461 Left Tail Light Engine Compartment (Left Side) 4 Wire 459 Master Relay Terminal X1 Engine Compartment (Left Side) 3 Wire 400/459B Circuit Breaker Engine Compartment (Left Side) 2 Connector P1 Bulkhead Connector J1 Engine Compartment (Left Front) Figure 106 1 2 3 4 5 6 7 NOTE FOLLOW--ON MAINTENANCE: Install master relay cover (WP 0271 00) Install engine deck assembly (WP 0417 00) Connect battery power (WP 0256 00) END OF TASK
