CHAPTER 6: MAINTENANCE OF ELECTRICAL SYSTEMS AND CIRCUITS
TM 9-2350-256-20
6-103 REPLACE FUEL INJECTION PUMP, FUEL SHUTOFF SOLENOID, LEAD AND
RELATED PARTS
THIS TASK COVERS
a. Removal
b. Disassembly
c. Assembly
d. Installation
INITIAL SET-UP
Tools:
Parts:
Equipment Condition:
Tool kit, general mechanic's
Lockwashers (4) (Appendix G,
Engine cooling fan housings
(Appendix C, item 53)
item 112)
removed (see paragraph 5-3)
Nuts, self-locking (3)
(Appendix G, item 172)
WARNING
Be certain MASTER switch is OFF when working on electrical systems to avoid electrical shock or bums.
a. REMOVAL

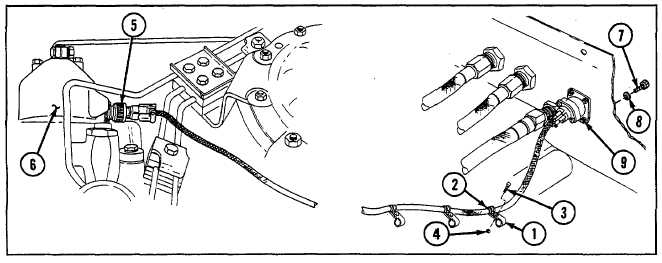

1 Disconnect six loop clamps (1 and 2) by removing three screws (3) and three self-locking nuts (4).
2 Remove three loop clamps (2).
3 Disconnect lead (5) from fuel injection pump (6).
4 Remove lead (5) by removing four screws (7), four lockwashers (8), and four nuts (9).
b. INSTALLATION
1 Install lead (5) using four screws (7), four new lockwashers (8), and four nuts (9).
2 Connect lead (5) to fuel injection pump (6).
3 Install three loop clamps (2).
4 Connect six loop clamps (1 and 2) using three screws (3) and three new self-locking nuts (4).
NOTE
Follow-on maintenance: Install engine cooling fan housings (see paragraph 5-3)
6-260
