l N S T A L L A T I O N ( C O N T)

M A I N T E N A N C E O F E X T E R N A L O I L L I N E S A N D F I T T I N G S ( L O W E R E N G I N E ) A N D S C A V E N G E R R E S E R V O I R

TM-9-2350-238-34-1 Recovery Vehicle Full-Tracked: Light Armored M578 (2350-00-439-6242) (Hull Components) Manual
Page Navigation
45

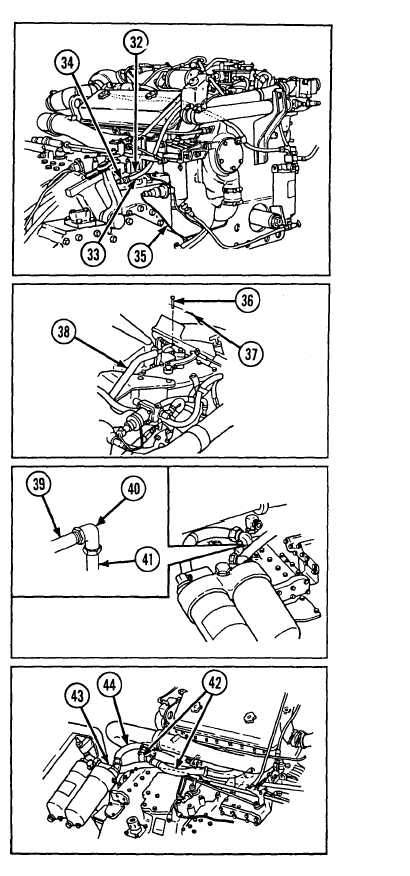

TM 9-2350-238-34-1 2 - 2 8 . M A I N T E N A N C E O F E N G I N E A N D R E L A T E D P A R T S , A N D T R A N S M I S S I O N A S S E M B L Y ( C O N T ) . l N S T A L L A T I O N ( C O N T) 1 5 I n s t a l l e l e c t r i c a l l e a d ( 3 2 ) a n d t a c h o m e t er cable (33), and secure with two clamps ( 3 4 ). 1 6 C o n n e c t t r a n s m i s s i o n o i l p r e s s u r e t r a n s- mitter electrical lead (35). 1 7 Install straight pin (36) and new cotter pin (37) securing governor throttle control rod ( 3 8 ). 1 8 I n s t a l l p i p e b u s h i n g ( 3 9 ) a n d p i p e - t o - t u be e l b o w ( 4 0 ). 1 9 C o n n e c t t r a n s f e r c a s e d r a i n h o s e ( 4 1 ) . 2 0 C o n n e c t t w o t r a n s m i s s i o n - t o - o i l c o o l er h o s e a s s e m b l i e s ( 4 2 ). 2 1 C o n n e c t e n g i n e o i l f i l t e r h o s e a s s e m b ly (43) and oil filter cooler hose assembly ( 4 4 ). 2 - 40
