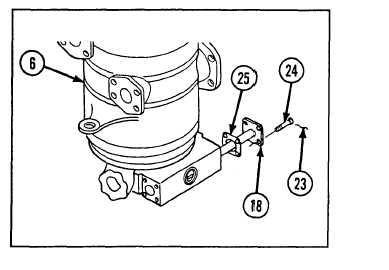

TM 9-2350-238-34-12 - 3 4 . M A I N T E N A N C E O F S L I P R I N G E L E C T R I C A L C O M P O N E N T S , S L I P R I N G D I S -C O N N E C T T O I N T E R I O R D I S C O N N E C T W I R I N G H A R N E S S , A N D S L I P R I N G T O2 4 - V O L T F E E D E L E C T R I C A L L E A D ( C O N T ) .R E M O V A L ( C O N T )1 4 R e m o v e I o c k w i r e ( 2 3 ) a n d f o u r s o c k eth e a d c a p s c r e w s ( 2 4 ).1 5 R e m o v e s l i p r i n g t o 2 4 - v o l t f e e d e l e c t r i c a llead (18) and shell gasket (25) from slipring (6).lNSPECTION/REPAIR 1234567Inspect for broken, damaged, or missing parts.For repair of slip ring disconnect to interior disconnect wiring harness and slip ring to 24-voltfeed electrical lead, refer to general maintenance, page 2-19.Turret slip ring cover is a repairable assembly. Refer to page 2-80.Slip ring electrical brush connector assembly is a repairable assembly. Refer to page 2-90.Slip ring electrical contact set assembly is a repairable assembly. Refer to page 2-84.If any kit component requires replacement, replace entire slip ring contact set assembly parts kito r s l i p r i n g e l e c t r i c a l b r u s h c o n n e c t o r a s s e m b l y p a r t s k i t . -Repair is by replacement of authorized parts (TM 9-2350-238-24P-1) which do not meeti n s p e c t i o n c r i t e r i a.I N S T A L L A T I O N1 Install new shell gasket (1) and slip ring to24-volt feed electrical lead (2) to slip ring(3), and secure with four socket head cap-screws (4) and new Iockwire (5). Pull slipring to 24-volt feed electrical lead (2) upthrough top of slip ring.2 - 7 6
