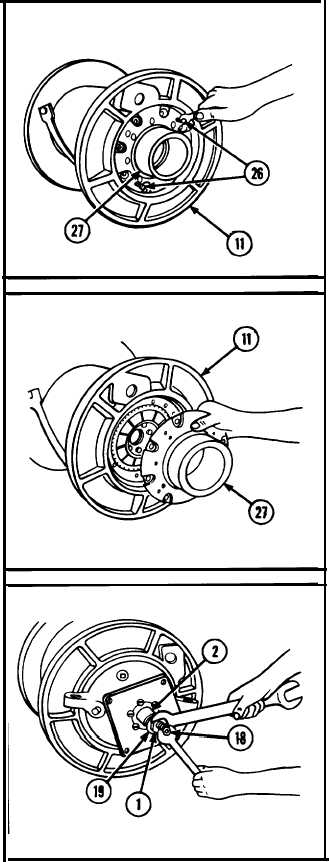

TM 9-2350 -238-34-217Working from motor end of cable reel(11), install four 1.5-in. (3.8-cm) long by3/8-in. (0.96-cm) diameter jackingscrews (26) in boom winch bearingwinch housing (27) and tighten untilboom winch bearing winch housing isfree. Remove jacking screws.18 Remove boom winch bearing housing(27) from cable reel (11).19 Remove hexagon plain nut (1), washers(19), and winch cylinder control collar(2) from brake rod of stage one boomwinch carrier assembly (18).2-47
