TM 9-2350-256-20-2
0334 00
2.

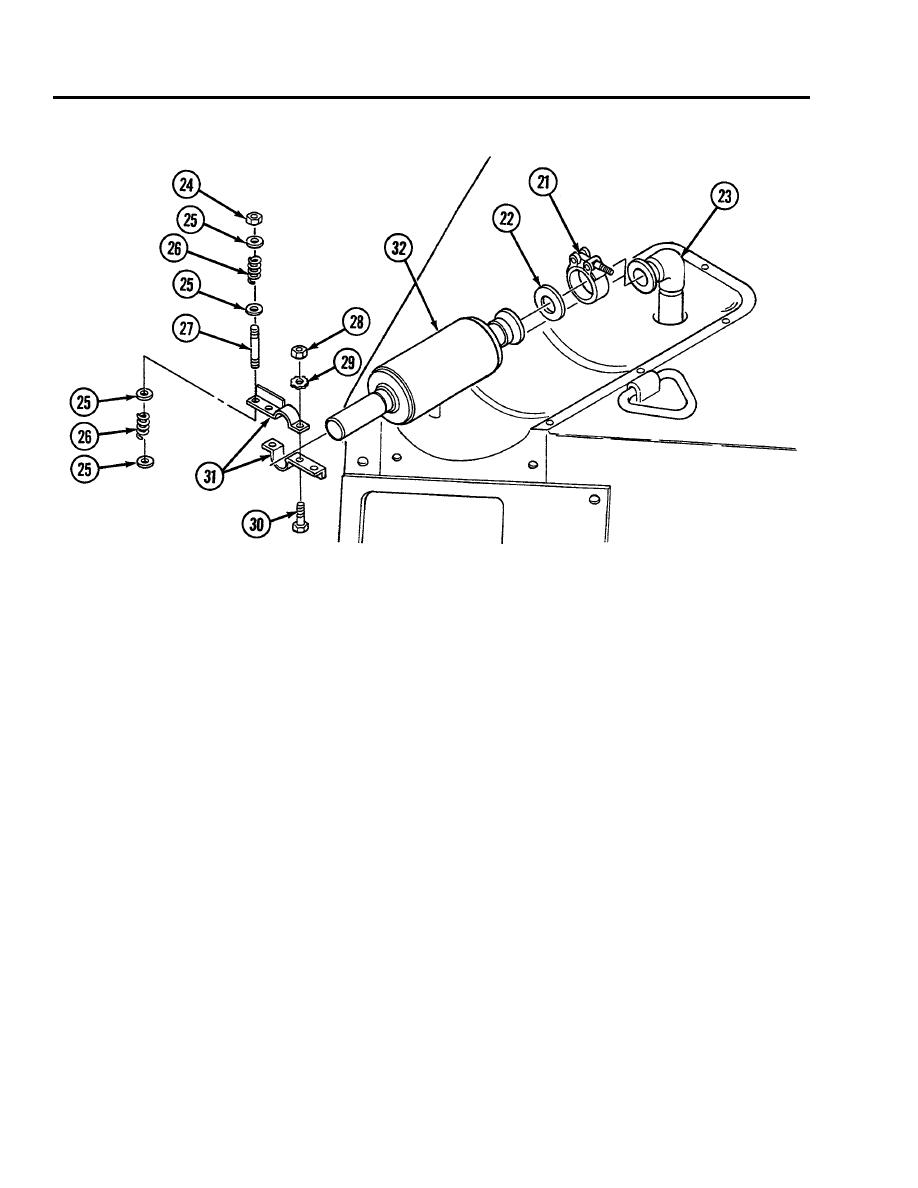

Install APU muffler (32) with shim (22) and clamp (21) at elbow (23), and two straps (31), two screws (30), two lockwashers
(29), two nuts (28), two studs (27), four springs (26), eight flat washers (25), and two nuts (24).
Install exhaust gate (9) with screw (18), lockwasher (19), and washer (20).
3.
Install APU exhaust cover (8) to muffler guard (15) with four bolts (16) and four lockwashers (17).
4.
Install APU exhaust cover (8) with six screws (10), six lockwashers (11), two screws (12), two lockwashers (13), and two
5.
washers (14).
0334 00-6
