WIRING HARNESS 2W612 REPLACEMENT (OVERRIDE MODIFICATION)

TM-9-2350-292-20-1 Carrier Ammunition Tracked M992A1(NSN 2360-01-362-3021) EIC:AE6 Manual
Page Navigation
1406

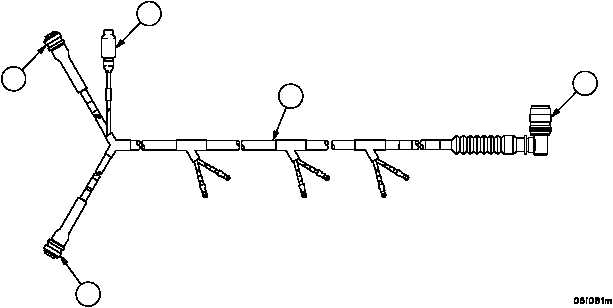

TM 9--2350--292--20--1 0292 00--4 WIRING HARNESS 2W602 REPLACEMENT -- CONTINUED 0292 00 Installation--Continued NOTE The following legend identifies attachment points for each connection. 2. Install wiring harness (1) with attaching hardware, at the following attachment points: Item No. 2W602 Connector/Lead/Wire To Connector/Lead/Wire Component Location 5 Wire Spare No Connection Main Winch 4 Connector P3 Level Winder Limit Switch Main Winch 3 Connector P2 Level Winder Limit Switch Main Winch 2 Connector P1 2W601 Connector J1 Main Winch Figure 104 2 1 4 5 3 NOTE FOLLOW--ON MAINTENANCE: Connect wiring 2W602 wires 361A, 361B, 375 and wire 10 to two layer limit switches and payout limit switch (WP 0501 00). END OF TASK
