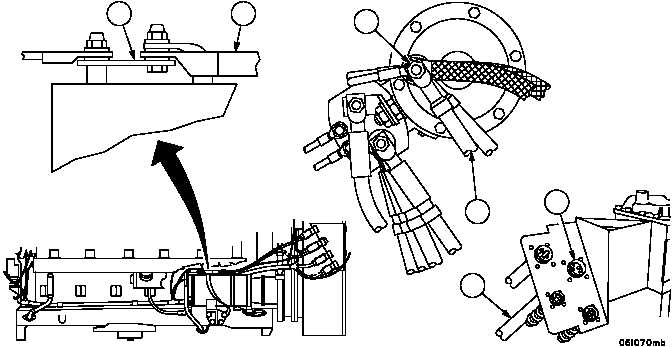

TM 9--2350--292--20--1 0299 00--4 WIRING HARNESS 3W201 REPLACEMENT -- CONTINUED 0299 00 Installation--Continued NOTE The following legend identifies attachment points for each connection. 2. Install wiring harness (1) with attaching hardware, at the following attachment points: CAUTION Use only silicone adhesive listed in initial setup. Other products could cause damage to equipment. NOTE Torque attaching hardware for connector T1 to 14--16 lb--ft (19--21.7 NSm). Coat exposed electrical terminals with silicone adhesive to protect from moisture. Item No. 3W201 Connector/Lead/Wire To Connector/Lead/Wire Component Location 4 Connector T2 Negative Starter Terminal (--) Lower Left Side of Engine 3 Connector T1 Generator Terminal E-- Lower Right Side of Engine 2 Connector J1 Engine Disconnect Bracket Connector J2 Right Side of Transmission Figure 111 1 4 2 1 1 3 NOTE FOLLOW--ON MAINTENANCE: Install powerpack (WP 0188 00) END OF TASK
