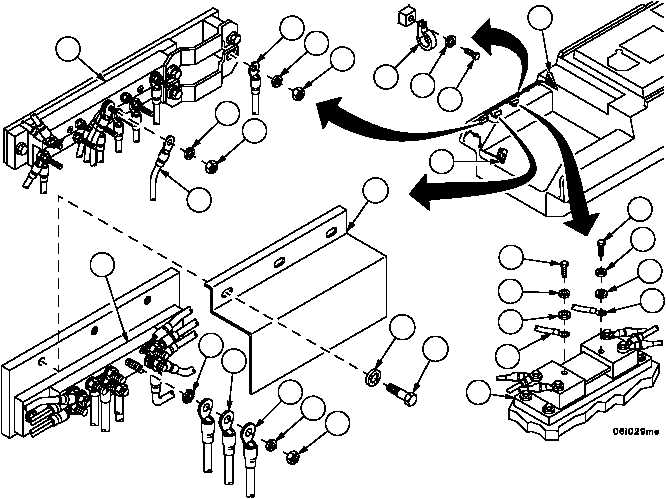

TM 9--2350--292--20--10313 00--3WIRING HARNESS 3W801 REPLACEMENT -- CONTINUED0313 00Installation1. Position wiring harness in vehicle.2. Connect wiring harness 3W801 connector P2 to engine disconnect bracket (27) and wiring harness 3W801 con-nector P1 to bulkhead disconnect (26).3. Secure wiring harness to vehicle hull with 10 clamps (25), 10 new lockwashers (24) and 10 screws (23).4. Connect wiring harness lead W (22) to negative bus bar (19) with new lockwasher (21) and nut (20).5. Connect wiring harness lead F (18) to negative bus bar (19) with new lockwasher (17) and screw (16).6. Connect two wiring harness leads X and Y (13 and 14) to shunt (15) with two screws (10), two new lockwashers(11) and two flat washers (12).7. Connect two wiring harness leads E and V (7 and 8) to positive bus bar (9) with new lockwasher (6), new lock-washer (5) and nut (4).8. Install positive bus bar cover (3) with three screws (1) and three new lockwashers (2).Figure 125191817162221206875492524232627101211141510111213321
