TM 9--2350--292--20--2
0625 00--8
AUXILIARY POWER UNIT ENGINE HEAT SHIELDS REPLACEMENT (HATZ) --
CONTINUED
0625 00
Installation--Continued

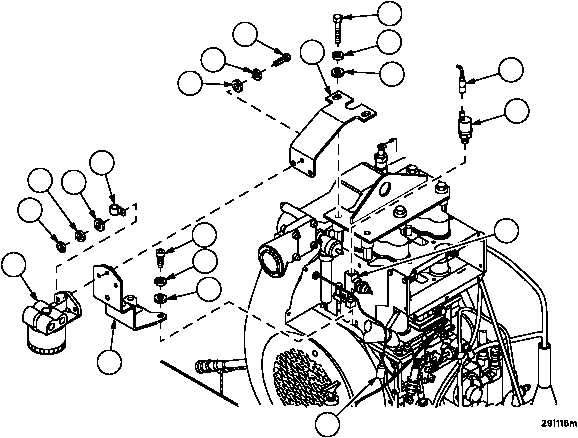

6. Install lead assembly 3W705 (51) (WP 0645 00).
7. Install oil pressure transmitter (49) on tee (50).
8. Connect wiring harness 3W704 lead 420 (48) to oil pressure transmitter (49).
9. Install bracket (40) on APU with two screws (45), two new lockwashers (46) and two flat washers (47).
10. Install oil filter support bracket (41) to APU with two screws (42), two new lockwashers (43) and two flat washers
(44).
11. Install remote oil filter assembly (39) on bracket (40) and oil filter support bracket (41) with three screws (38),
three nuts (34), six new lockwashers (35), six flat washers (36) and clamp (37).
34
36
35
37
38
35
36
40
39
41
49
48
50
51
42
43
44
45
46
47
