FILTER VALVE MANIFOLD TRANSDUCERS AND RELATED PARTS REPLACEMENT

TM-9-2350-292-20-2 Recovery Vehicle Heavy Full-Tracked: M88A2 (NSN 2350-01-390-4683) (EIC:ACQ) Manual
Page Navigation
1276

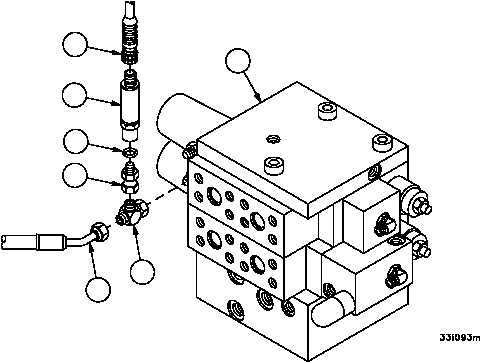

TM 9--2350--292--20--2 0688 00--8 MAIN AND HOIST WINCH DIRECTIONAL CONTROL VALVE AND MAIN WINCH POWER REDUCTION MANIFOLD TRANSDUCERS AND RELATED PARTS REPLACEMENT -- CONTINUED 0688 00 Installation--Continued 12. Install new preformed packing (7) on straight swivel adapter (3). 13. Install tee (4) in main and hoist winch directional control valve (6). 14. Install hose (5) on tee (4). 15. Install straight swivel adapter (3) on transducer 4MT529 (2) then install transducer 4MT529 (2) with straight swivel adapter (3) on tee (4). 16. Install wiring harness 4W503 connector P4 (1) on transducer 4MT529 (2). NOTE: WINCH DIRECTIONAL CONTROL VALVE HOSES AND FITTINGS REMOVED FOR CLARITY 1 2 3 4 5 6 7 NOTE FOLLOW--ON MAINTENANCE: Calibrate new transducers (WP 0692 00) Start engine, operate main and hoist winch hydraulic controls several times to purge air from hoses (TM 9--2350--292--10) Check hydraulic system for leaks and fill hydraulic reservoir (TM 9--2350--292--10) Install floor plate #18 (WP 0454 00) END OF TASK
