TM 9-2350-256-34
0080 00
Adjustment
1.

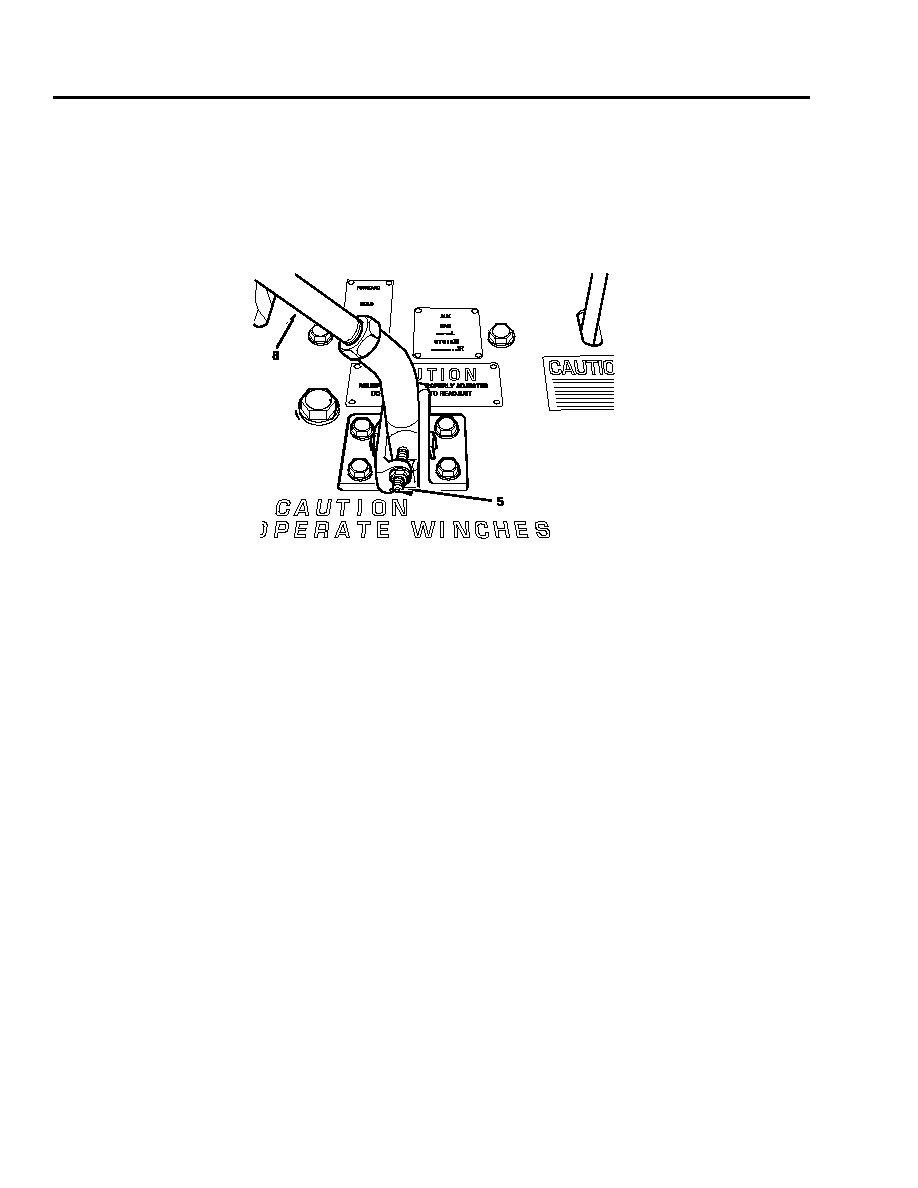

Loosen jamnuts on adjustment screws (5).
2.
Back off adjustment screws (5).
3.
Move spade control lever (8) completely back. Adjust back adjustment screw (5) until it touches spade control lever and
add one full turn. Tighten jamnut.
4.
Move spade control lever (8) completely forward. Adjust front adjustment screw (5) until it touches spade control lever and
add one full turn. Tighten jamnut.
END OF WORK PACKAGE
0080 00-4
