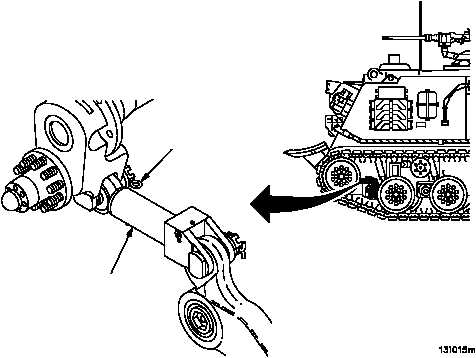

TM 9--2350--292--10 0101 00--47 PREVENTIVE MAINTENANCE CHECKS AND SERVICES INCLUDING LUBRICATION INSTRUCTIONS -- CONTINUED 0101 00 TABLE 3 PREVENTIVE MAINTENANCE CHECKS AND SERVICES, AFTER--CONTINUED Item No. Not Fully Mission Capable If: CREWMEMBER Procedure LOCATION Item toCheck/ Service Interval DRIVER 25 After Track Adjusting Links, Right and Left Side a. Check that link assembly is not missing or broken. b. Check that cotter pin is not missing or broken. c. Check connector pin and retainer bolt. d. Close skirts (WP 0102 00). a. Link assembly broken, missing or damaged. b. Connector pin broken, missing or nut missing. COTTER PIN LINK ASSEMBLY NOTE: SKIRTS AND IDLER WHEEL REMOVED FOR CLARITY CREW NOTE Adjust track tension after all other track inspection faults have been corrected. 26 After Track Tension, Right and Left Side a. Move vehicle forward on hard level surface and coast to stop without using brakes or steering. b. Open skirts #1 thru #5 (WP 0102 00). c. Check and adjust track tension (WP 0103 00 or WP 0104 00). d. Close skirts #1 thru #8 (WP 0102 00).
