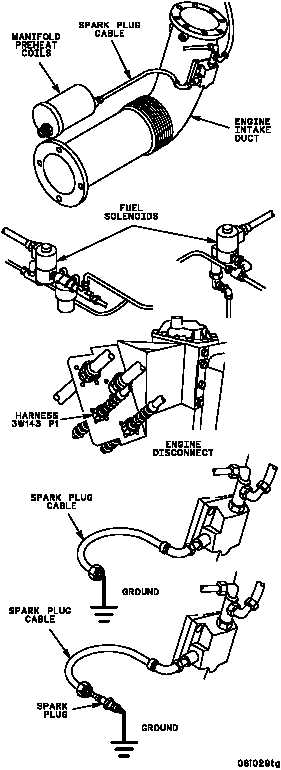

TM 9--2350--292--20--10043 00--10ENGINE CRANKS BUT WILL NOT START IN COLD WEATHER0043 00CONTINUED FROM STEP WIs spark observed for both cables?Xnoyes1. Reconnect all spark plug cables.2. Reconnect connectors to both fuel solenoids andboth preheat coils.3. Install engine ground hop kit (WP 0189 00).4. Disconnect spark plug cable from one of themanifold preheater spark plugs.WARNINGHigh voltage is present at spark plug cables.Wear protective gloves to avoid personnelinjury while performing this procedure.5. Turn MASTER switch and ENG FUEL SHUTOFFswitch ON (TM 9--2350--292--10).6. Hold center conductor of cable close to a groundpoint.7. Hold ENGINE PREHEAT switch ON(TM 9--2350--292--10). Check for spark.8. Release ENGINE PREHEAT switch and turnMASTER switch and ENG FUEL SHUTOFFswitch OFF (TM 9--2350--292--10).9. Repeat steps 4 thru 8 on remaining plug cable.Replace applicable faulty preheatcoil (WP 0224 00/WP 0225 00).Verify fault is corrected.Replace faulty plug (WP 0224 00/WP 0225 00). Verify fault is corrected.Is spark observed for both plugs?1. Remove preheater spark plugs and attach sparkplug cables to them.WARNINGHigh voltage is present at spark plug cables.Wear protective gloves to avoid personnel in-jury while performing this procedure.2. Turn MASTER switch ON (TM 9--2350--292--10).3. Hold ENGINE PREHEAT switch ON(TM 9--2350--292--10).4. Place spark plug case to ground. Check for spark.5. Release ENGINE PREHEAT switch and turnMASTER switch OFF (TM 9--2350--292--10).6. Repeat steps 2 thru 5 for remaining plug.YnoyesCONTINUED ON NEXT PAGE
