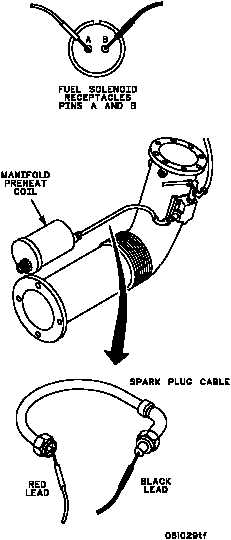

TM 9--2350--292--20--1 0043 00--9 ENGINE CRANKS BUT WILL NOT START IN COLD WEATHER 0043 00 CONTINUED FROM STEP U no yes Replace faulty solenoid (WP 0224 00/WP 0225 00). Verify fault is corrected. Is continuity present at both tests? Place one multimeter lead in pin A of each fuel sole- noid (one at a time) while placing other multimeter lead in pin B of each fuel solenoid (one at a time). Check for continuity. V Is continuity present on each cable? 1. Disconnect spark plug cables from spark plugs and preheat coils. 2. Place one multimeter lead on center conductor of cable and other lead on center conductor of opposite end of cable. Check for continuity on each cable in this manner. W no yes Replace faulty cable. Verify fault is corrected. CONTINUED ON NEXT PAGE
