WHEN ACTIVATING LAMP TEST SWITCH, INDICATOR WILL NOT COME ON (cont)

WHEN ACTIVATING LAMP TEST SWITCH, INDICATOR WILL NOT COME ON (cont) - TM-9-2350-292-20-1_615

MASTER RELAY AND SLAVE RECEPTACLE OVERVIEW AND DIAGRAMS

TM-9-2350-292-20-1 Carrier Ammunition Tracked M992A1(NSN 2360-01-362-3021) EIC:AE6 Manual
Page Navigation
572

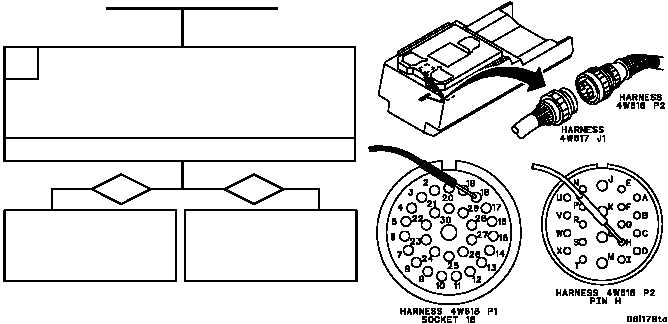

TM 9--2350--292--20--1 0124 00--4 WHEN ACTIVIATING LAMP TEST SWITCH, INDICATOR WILL NOT COME ON -- CONTINUED 0124 00 Repair (WP 0290 00) or replace (WP 0330 00) harness 4W617. Verify fault is corrected. yes no Repair (WP 0290 00) or replace (WP 0331 00) harness 4W618. Verify fault is corrected. H 1. Disconnect harness 4W618 connector P2 from harness 4W617 connector J1 (WP 0331 00). 2. Place one multimeter lead in harness 4W618 connector P1 socket 18 and other multimeter lead on harness 4W618 connector P2 pin H. Check for continuity. Is continuity present? CONTINUED FROM STEP G END OF TASK
