AUXILIARY POWER UNIT LEAD ASSEMBLY 3W728 REPLACEMENT (HATZ)
-- CONTINUED
0653 00
Installation

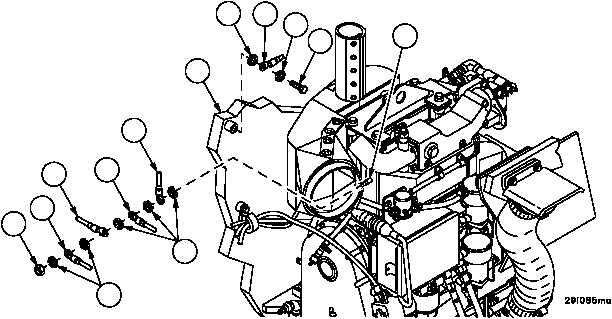

1. Install lead assembly 3W733 (9), wiring harness 3W730 GND lead (8), lead assembly 3W728 (3) and lead assem-
bly 3W727 (7) on stud E3 (10) of APU with nut (5) and five new lockwashers (6).
2. Install lead assembly 3W728 (3) to vehicle bulkhead (4) with screw (1) and two new lockwashers (2).
3. Apply sealant to exposed electrical terminals on stud E3 (10).
9
1
2
3
2
4
5
6
7
6
3
8
10
NOTE
FOLLOW--ON MAINTENANCE:
Install APU cover (WP 0413 00)
Connect battery power (WP 0256 00)
END OF TASK
