TRANSMISSION OIL SAMPLING VALVE REPLACEMENT

TM-9-2350-292-20-2 Recovery Vehicle Heavy Full-Tracked: M88A2 (NSN 2350-01-390-4683) (EIC:ACQ) Manual
Page Navigation
5

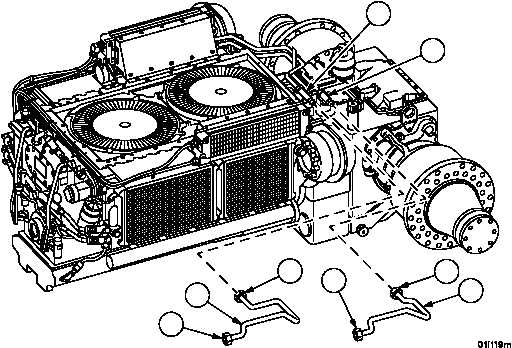

TM 9--2350--292--20--2 TRANSMISSION OIL COOLER LINES REPLACEMENT -- CONTINUED 0345 00 Installation--Continued 9. Install two left side oil cooler lines (4) with coupling nuts (1) at tees (2) and coupling nuts (3) on opposite ends of lines (4) at oil cooler. Figure 157 1 1 3 4 4 3 POWERPACK REMOVED FOR CLARITY 2 2 NOTE FOLLOW--ON MAINTENANCE: Install transmission oil temperature transmitter (WP 0348 00) Install transmission oil temperature switch (WP 0349 00) END OF TASK 0345 00--5/6 blank
