TRANSMISSION OIL TEMPERATURE TRANSMITTER REPLACEMENT

TM-9-2350-292-20-2 Recovery Vehicle Heavy Full-Tracked: M88A2 (NSN 2350-01-390-4683) (EIC:ACQ) Manual
Page Navigation
8

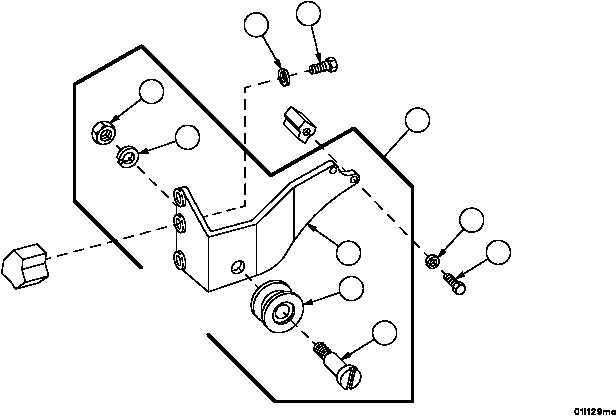

TM 9--2350--292--20--2 0347 00--2 TRANSMISSION BRACKET ASSEMBLY REPAIR -- CONTINUED 0347 00 Disassembly 1. Remove nut (4), lockwasher (5), screw (6) and roller (7) from transmission bracket (8). Discard lockwasher. 2. Inspect parts for damage and replace as required. Assembly Install roller (7) with screw (6), new lockwasher (5) and nut (4) on transmission bracket (8). Installation NOTE For mounting of transmission bracket assemblies use existing transmission hardware. Install transmission bracket assembly (3) with five new lockwashers (2) and five screws (1). Figure 157 1 1 2 2 6 7 4 5 8 3 NOTE FOLLOW--ON MAINTENANCE: Install powerpack (WP 0188 00) END OF TASK
