SECTION V: TROUBLESHOOTING
TM 9-2350-256-20
WARNING
Remove all jewelry such as rings, dog tags,
bracelets, etc. If jewelry contacts a metal
surface a direct short may result in instant
heating of tools, damage to equipment, and
injury or death to personnel.

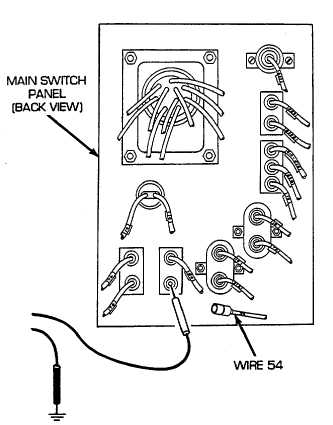

K Reconnect wire 54 to circuit breaker side of ENGINE
FUEL SHUTOFF switch. Disconnect wire 54 from panel
side of ENGINE FUEL SHUTOFF switch. Place red lead
of multimeter on terminal of ENGINE FUEL SHUTOFF
switch and black lead to ground. Turn MASTER and
ENGINE FUEL SHUTOFF switches on and check for
voltage. Turn MASTER and ENGINE FUEL SHUTOFF
switches OFF. If voltage is present, repair/replace wire
54 of starter switch wiring harness (see paragraph 6- 57).
If voltage is not present, replace ENGINE FUEL
SHUTOFF switch (see paragraph 6-10).
2-85
