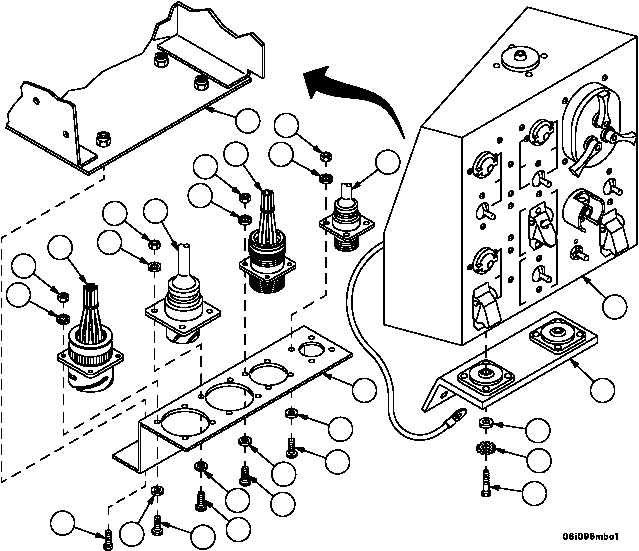

TM 9--2350--292--20--1 0242 00--3 MAIN SWITCH PANEL ASSEMBLY REPAIR -- CONTINUED 0242 00 Disassembly 1. Remove two screws (21), two flat washers (22), lockwasher (23) and mount (24) from main switch panel assembly (6). Discard lockwasher. 2. Remove two screws (25) and panel (26) with wiring harnesses attached, from main switch panel assembly (6). 3. Remove eight nuts (27), eight lockwashers (28), eight flat washers (29), eight screws (30), wiring harness 4W151 J2 (31) from panel (26) J4 and 4W109 J1 (32) from panel (26) J3. Discard lockwashers. 4. Remove eight nuts (33), eight lockwashers (34), eight flatwashers (35), eight screws (36), wiring harness 4W151 J1 (37) from panel (26) J2 and 4W118 J1 (38) from panel (26) J1. Discard lockwashers. 6 6 24 22 23 21 25 29 29 26 28 27 35 36 36 35 30 30 31 32 33 34 28 27 33 34 37 38
