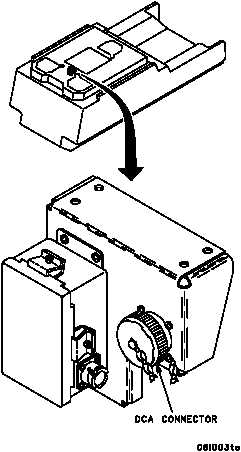

TM 9--2350--292--20--10050 00--1ENGINE RUNS ROUGH OR MISFIRES AND/OR KNOCKS0050 00THIS WORK PACKAGE COVERS:Engine Runs Rough Or Misfires And/Or KnocksINITIAL SETUP:Tools and Special ToolsGeneral mechanic’s tool kit (item 1, WP 0717 00)STE--ICE--R (item 85, WP 0717 00)0--300 psi dial pressure gauge (item 81, WP 0717 00)Equipment ConditionsVehicle MASTER switch OFF (TM 9--2350--292--10)Engine deck removed (WP 0417 00)Personnel RequiredTwoIs STE--ICE--R available?noyesGo to Step I.AB 1. Setup STE--ICE--R for operation(TM 9--4910--571--12&P).2. Connect STE--ICE--R harness W1 to vehicleharness 4W800 J1 DCA connector.3. Enter vehicle ID (VID) 04.4. Dial 01 into VTM and press and release “TEST”.5. When VTM shows “CON” enter 24 into TESTSELECT and press TEST until “CAL” is shownon VTM and release TEST.6. Press and release TEST.7. Crank engine for 10 seconds while holding fuelshutoff switch in OFF. Record results.8. Start engine (TM 9--2350--292--10). Recordresults.9. Shut engine down (TM 9--2350--292--10).Is VTM reading between 60 and 90 psi?noyesCONTINUED ON NEXT PAGEWARNINGRemove rings, bracelets, wristwatches,and neck chains before working on anyvehicle. Jewelry can catch on equip-ment and cause injury, or may shortacross an electrical circuit and causesevere burns or electrical shock.Go to Step D.
