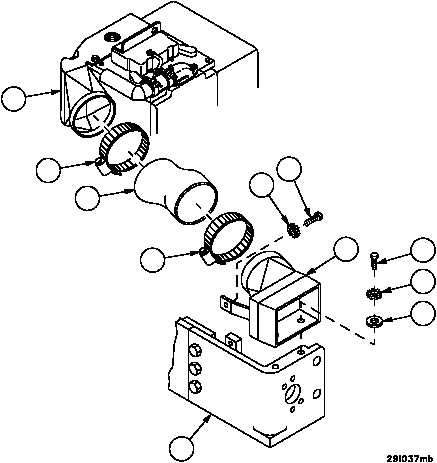

TM 9--2350--292--20--20620 00--3AUXILIARY POWER UNIT DUCTING REPLACEMENT -- CONTINUED0620 00Removal--ContinuedNOTEThe following steps are performed with APU cover re-moved (WP 0413 00).5. Remove two screws (15), two lockwashers (16) and two flat washers (17) securing duct (18) to auxiliaryhousing (14). Discard lockwashers.6. Remove screw (19) and lockwasher (20), separate duct (18) from auxiliary housing (14). Discard lockwasher.7. Loosen bolts on clamps (21 and 22). Slide clamps (21 and 22) back over air duct hose (23).8. Remove air duct hose (23) and clamp (21) from duct (18). Remove clamp (21) from hose (23).9. Remove air duct hose (23) and clamp (22) from duct (24). Remove clamp (22) from hose (23).Figure 3402214171615182019212423
