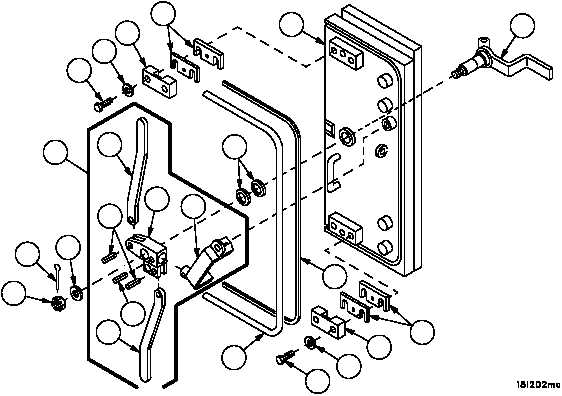

TM 9--2350--292--20--20431 00--6LEFT PERSONNEL DOOR ASSEMBLY AND TORSION BAR REPAIR --CONTINUED0431 00Assembly--Continued2. Install two arms (37 and 38) on clevis (35) with two new spring pins (36).3. Install handle (34) on clevis (35) with new spring pin (33).4. Install handle (31), two new spring washers (30), locking assembly (29) with flat washer (28), nut (27) and newcotter pin (26) on door (21).5. Apply lubricant to four screws (22).6. Install shim(s) (25) and two slides (24) on door (21) with four screws (22) and four flat washers (23).7. Torque four screws (22) to 95--105 lb--ft (129--142.4 NSm).WARNINGNOTEStrip is used behind seal as a shim. Strip is only installedfor proper mating of seal/hull.8. Clean door seal mating surfaces with dry--cleaning solvent.9. Apply rubber based adhesive to new seal (19) and new strip (20), if removed, and mating surface of door (21).10. Install new seal (19) and new strip (20) on door (21).Figure 2093121252423221920302223242529272628373635343338
