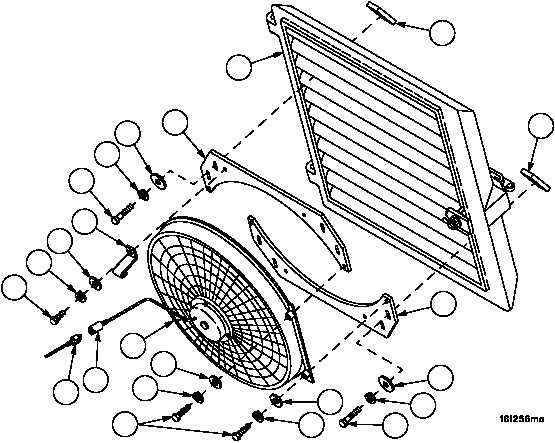

TM 9--2350--292--20--20439 00--6AUXILIARY POWER UNIT DOOR, FAN ASSEMBLY AND HOLD--OPEN LATCHREPLACEMENT (HATZ) -- CONTINUED0439 00Installation--Continued8. Install two mounting plates (8 and 9) if removed, with eight mounting blocks (16), eight flat washers (15), eightnew lockwashers (14) and eight screws (13).9. Install fan (7) on two mounting plates (8 and 9) with four flat washers (12), four new lockwashers (11) and fourscrews (10).10. Install four clips (6) to fan (7) and two mounting plates (8 and 9) with four flat washers (5), four new lockwashers(4) and four screws (3).11. Connect wiring harness 3W730 connector P3 (2) to APU door fan connector (1).1616345671112101314158915131412111217NOTEFOLLOW--ON MAINTENANCE:Close APU door assembly if opened(TM 9--2350--292--10)END OF TASK
