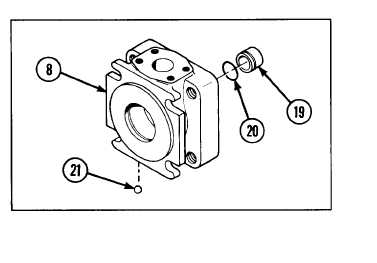

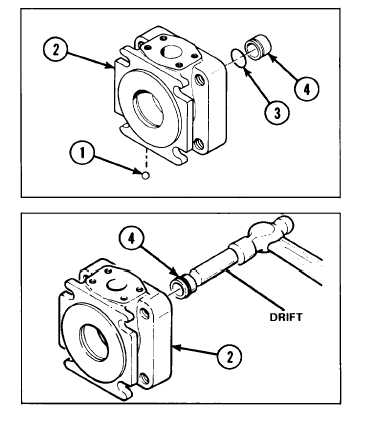

TM 9-2350-238-34-22-48. MAINTENANCE OF TRAVERSING HYDRAULIC MOTOR (CONT).DISASSEMBLY(CONT)11 Using hammer and drift, remove bushing(19) from backside of front housing (8).12 Remove preformed packing (20) frombushing (19).13 Only if damaged, remove ball (21) fromunderside of front housing (8).INSPECTION/REPAIR1 Inspect for broken, damaged, or missing parts.2 If front housing is broken, damaged, or missing, repair is by replacement of next higherassembly.3 If shaft is broken, damaged, or missing, repair is by replacement of next higher assembly,4 Repair by replacement of authorized parts (TM 9-2350-238-24P-2).1 If removed, install ball (1) in underside offront housing (2).2 Apply engine oil (item 15, appx B) onnew preformed packing (3).3 Install new preformed packing (3) ingroove of new bushing (4).4 Using hammer and drift, install newbushing (4) into backside of front hous-ing (2).2-250
