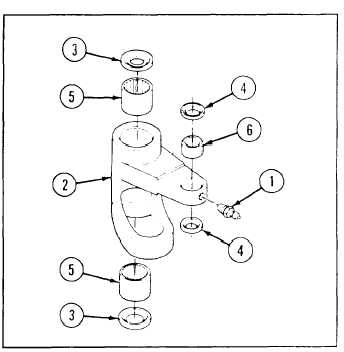

SECTION V: CONTROLS AND LINKAGESTM 9-2350-256-209-82 REPLACE/REPAIR BRAKE CAM ASSEMBLYTHIS TASK COVERSa. Removalb. DisassemblyINITIAL SET-UPParts:•Seals (2) (Appendix G, item 262)•Seals (2) (Appendix G, item 250)c. AssemblyReference:Deletedd. Installationa. REMOVALRemove brake cam assembly (see paragraph 9-80).b. DISASSEMBLY1Remove lubrication fitting (1) from brake camassembly (2).2Pry four seals (3 and 4) out of brake cam assembly(2).3Tap two bearings (5) and bearing (6) out of brakecam assembly (2).c. ASSEMBLY1Install two bearings (5) into brake cam assembly(2).2Install bearing (6) into brake cam assembly (2)making sure that bearing hole alines with hole inbrake cam assembly for lubrication fitting.NOTESeals must be installed with rubber lipsfacing outward.3Install four new seals (3 and 4) in brake cam assembly (2).4Install lubrication fitting (1) in brake cam assembly (2).5Lubricate in accordance with Appendix J.d. INSTALLATIONInstall brake cam assembly (see paragraph 9-80).Change 19 - 2 0 5
