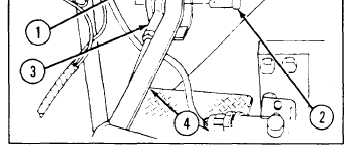

TM 9-2350-256-20CHAPTER 9:MAINTENANCE OF HULL- AND CAB-RELATED COMPONENTS9-81 REPLACE/REPAIR BRAKE PEDAL AND BRACKET ASSEMBLY-Continuedd. INSTALLATION1Install brake pedal and bracket assembly (27) with two new lockwashers (29), two screws (28), and two nuts(30).2Install bracket (22) with two screws (23), two flat washers (24), two new lockwashers (25), and two nuts (26).3Install new lockwasher (6) and screw (5).4Install throttle control assembly (20) and fuel shutoff (21) to bracket (22) and tighten nuts (1s and 19).5Install spade release bracket (15) with two new lockwashers (17) and two screws (16).6Connect shifting rod (12) to lever (8) with straight pm (14 ) and new cotter pm (13).7Connect steering rod (7) to lever (8) with straight pm (10), two washers (11), and two new cotter pins (9).8Connect rod assembly (3) to brake pedal (4) withstraight pin (2) and new cotter pin (1).NOTEFollow-on maintenance:Install neutralsafety switch (seeparagraph 6-14)9-204Change 1
