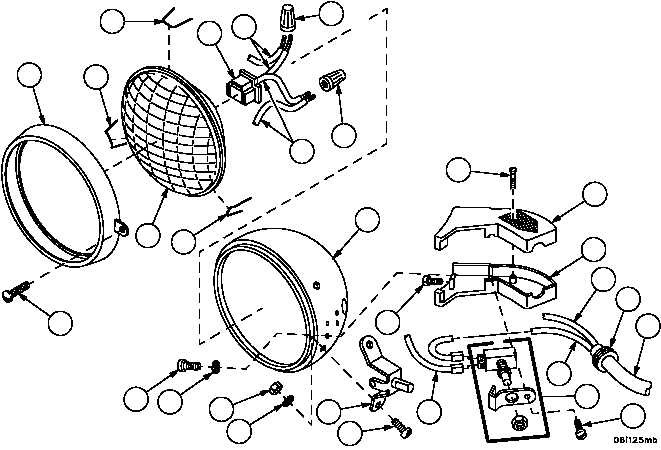

TM 9--2350--292--20--1 0280 00--3 TROUBLE LIGHT ASSEMBLY REPAIR -- CONTINUED 0280 00 Disassembly--Continued 4. Remove screw (13) and loosen metal molding (14). 5. Disconnect lamp socket (15) from lamp (16). 6. Remove three wire clips (17) securing lamp (16) into metal molding (14). Separate lamp (16) from metal molding (14). 7. Disconnect wire splices (18) from wires (19). Separate wires and tag individual wires to aid assembly. Remove lamp socket (15). 8. Remove four screws (20) and four lockwashers (21) from shell (22). Thread disconnected wires (19) through shell (22) and separate shell from pistol grip handle (23). Discard lockwashers. 9. Remove two screws (24), two lockwashers (25), two nuts (26) and saddle bracket assembly (27). Discard lock- washers. 10. Remove two screws (28) to loosen switch and bracket assembly (29). 11. Remove screw (30) and separate pistol grip handle (23). 12. Unsolder, remove and tag wires (31) and (19) attached to switch. Remove switch and bracket assembly (29). 13. If necessary, remove cord reel cable (32) with attached cable retainer (33) from pistol grip handle (23). 14. Inspect parts for damage and replace as required. Figure 91 14 17 17 17 16 13 15 19 18 18 19 A B 22 27 24 28 19 28 31 33 19 23 23 30 29 32 A B 21 20 25 26
