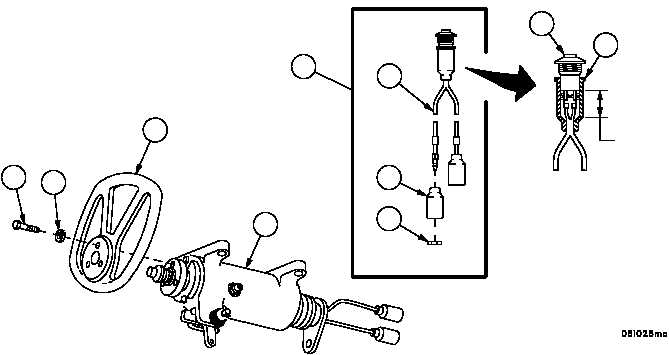

TM 9--2350--292--20--10287 00--2PROXIMITY SWITCH REPLACEMENT -- CONTINUED0287 00InstallationNOTEIf a new proximity switch assembly is being installed per-form steps 1 through 6. If the proximity switch that wasremoved is being reinstalled perform steps 2 through 6.1. Remove two slotted washers (1) and two shells (2) from two leads (3) on new proximity switch assembly (8).2. Apply adhesive between switch (9) and shell (10).3. Install proximity switch assembly (8) into steering control assembly (7).4. Apply sealing compound to threads of three screws (4).5. Install steering wheel (6) on steering control assembly (7) with three screws (4) and three new lockwashers (5).6. Install two shells (1) and two slotted washers (2) on two leads (3).Figure 10APPLYSILICONE89101234567NOTEFOLLOW--ON MAINTENANCE:Install steering control assembly (WP 0401 00)END OF TASK
