BATTERY, BATTERY TRAY AND BATTERY TERMINAL REPLACEMENT

TM-9-2350-292-20-1 Carrier Ammunition Tracked M992A1(NSN 2360-01-362-3021) EIC:AE6 Manual
Page Navigation
1373

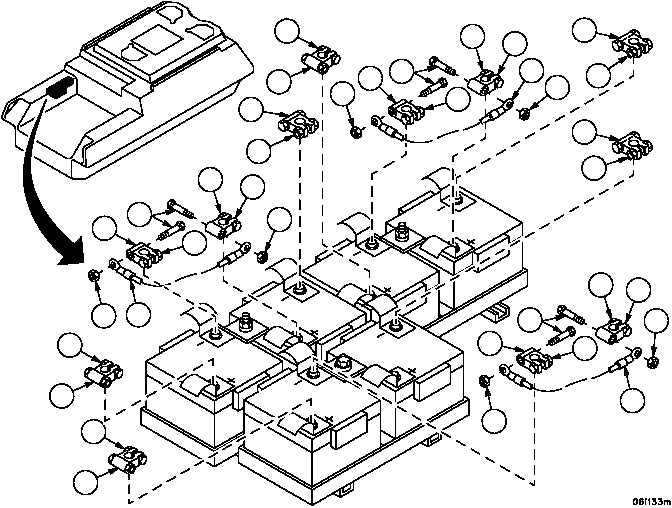

TM 9--2350--292--20--1 0288 00--2 BATTERY, BATTERY TRAY AND BATTERY TERMINAL REPLACEMENT -- CONTINUED 0288 00 Removal WARNING To prevent personnel injury or equipment damage, en- sure battery power is disconnected from vehicle prior to battery, battery terminal or battery tray removal. 1. At each of the three lead assemblies 3W266 (1), remove nut (2) and screw (3) securing lead assembly (1) to bat- tery terminal (4). Remove three lead assemblies (1). Reassemble nut (2) and screw (3) on battery terminals (4) for use in installation. 2. Loosen collared nut (5) on each of 12 terminals (4). Pry open terminals (4) or use battery terminal puller to loosen and remove battery terminals (4) from battery posts. Figure 102 1 2 3 4 4 4 4 4 5 5 5 5 5 4 5 2 1 2 3 4 4 5 5 2 1 2 3 4 4 5 5 2 4 5 4 5
