BATTERY, BATTERY TRAY AND BATTERY TERMINAL REPLACEMENT --
CONTINUED
0288 00
Removal--Continued
8. Remove four screws (18), four lockwashers (19) and two battery trays (20). Discard lockwashers.
9. Remove six screws (21), six lockwashers (22) and four battery trays (23). Discard lockwashers.
10. Inspect parts for damage and replace as required.
Installation
1. Install four battery trays (23) with six screws (21) and six new lockwashers (22).
2. Install two battery trays (20) with four screws (18) and four new lockwashers (19).

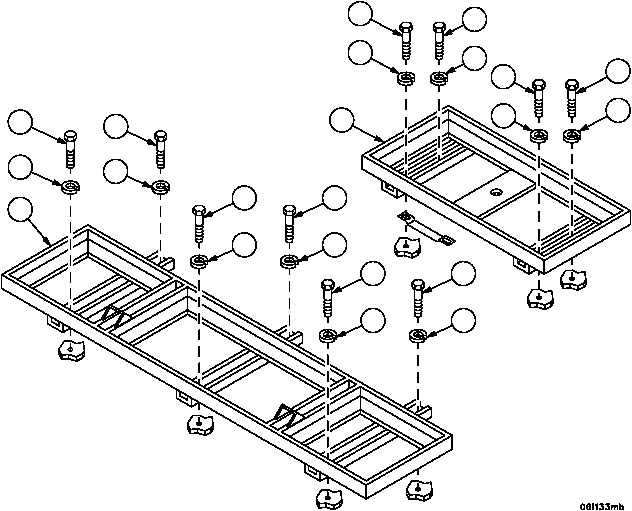

Figure 102
