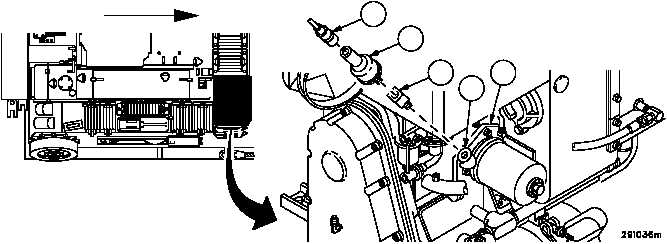

TM 9--2350--292--20--20631 00--1AUXILIARY POWER UNIT OIL PRESSURE TRANSMITTER REPLACEMENT0631 00THIS WORK PACKAGE COVERS:Removal, InstallationINITIAL SETUP:Tools and Special ToolsGeneral mechanic’s tool kit (item 1, WP 0717 00)Materials/PartsAntiseizing tape (item 22, WP 0716 00)Equipment ConditionsBattery power disconnected (WP 0256 00)APU cover removed (WP 0413 00)APU engine oil filter removed (WP 0596 00)NOTEPerform Removal steps 1, 2 and 4 and Installation steps4 through 7 for replacement of oil pressure transmitter.Perform Removal steps 1 through 4 and Installation steps1 through 7 for replacement of reducer.Removal1. Disconnect wiring harness 3W704 electrical lead 420 (1) from oil pressure transmitter (2).2. Remove transmitter (2) from reducer (3).NOTEPerform the following step only if reducer is damaged orbecomes loose during removal of transmitter.3. Remove reducer (3) from adapter plug (4) on oil filter adapter assembly (5).4. Inspect parts for damage and replace as required.Figure 342FORWARD12345
