TM 9-2350-256-20
CHAPTER 9: MAINTENANCE OF HULL- AND CAB-RELATED COMPONENTS
S-76 REPLACE/REPAIR SHIFTING CONTROLS AND LINKAGES
THIS TASK COVERS
a. Removal
b. Disassemby
c. Assembly
d. Installation
INITIAL SET-UP
Tools:
Equipment Conditions:
•Tool kit, general mechanic’s (Appendix C, item 53)
• Pliers, retaining ring, external Appendix B, item
NOTE
31)
Only remove or open items necessary to
Parts:
gain access to area of linkage requiring
removal.
•Bearings (4) (Appendix G, Item 1)
• Lockwashers (2) (Appendix G, item 114)
• Powerplant removed (see paragraph 3-1)
•Lockwashers (3) (Appendix G, item 116)
• Left-side air cleaner removed (see paragraph 3-24)
•Lockwashers (6) (Appendix G, item 130)
•Cab subfloor plates removed (see paragraphs 9-1
• Lockwashers (3) (Appendix G, item 131)
through 9-23)
•Lockwashers (17) (Appendix G, item 132)
• Air inlet doors removed as necessary (see
• Lockwashers (6) (Appendix G, item 131)
paragraph 9-56)
• Lockwvasher (Appendix G, item 144)
•Air inlet grilles removed as necessary (see
• Pin, cotter (Appendix G, item 212)
paragraph 9-57)
•Pins, cotter (4) (Appendix G, Item 227)
•Ammunition rack removed (see paragraph 9-100)
•Seal (Appendix G, item 262)
•Toolbox rack removed (see paragraph 9-103)
•Seals (4) (Appendix G, item 246)
•Oddment tray removed (see paragraph 9-104)
a. REMOVAL
1

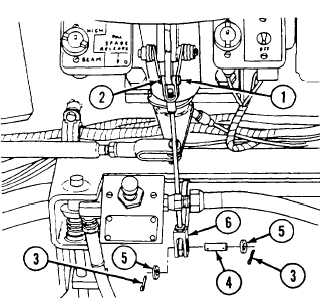

Remove cotter pm (1) and straight pm (2).
2
Remove two cotter pins (3), straight pin (4), two washer (5), and rod (6).
9-158.2
