3.
Inspect guard assembly for broken welds, cracks, and other damage that would impair its use.
Assembly
1.

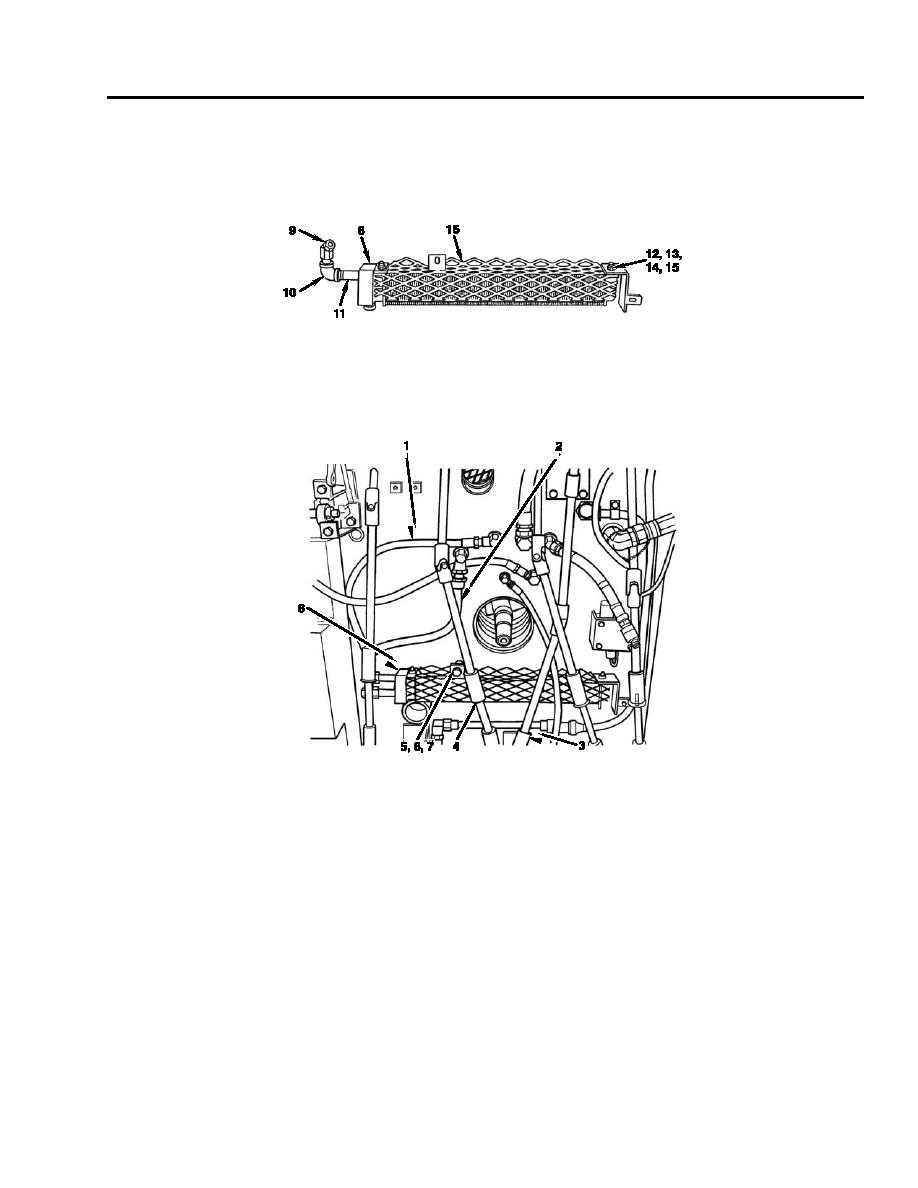

Install guard (16), two screws (15), washers (14), lockwashers (13), and nuts (12).
2.
Install nipple (11), elbow (10), and adapter union (9) to mechanical transmission oil cooler assembly (8).
Installation
1.
Install mechanical transmission oil cooler (8), two washers (7), lockwashers (6), and screws (5).
2.
Move rod (4) into position and install pin (hidden) (3).
3.
Install oil cooler outlet line (2) and oil cooler inlet line (1).
END OF WORK PACKAGE
