SLOW OR NO HYDRAULIC COMPONENT OPERATION WITH HYDRAULIC SELECTOR SET IN MAIN POSITION (cont)

SLOW OR NO HYDRAULIC COMPONENT OPERATION WITH HYDRAULIC SELECTOR SET IN MAIN POSITION (cont) - TM-9-2350-292-20-1_413

SLOW OR NO HYDRAULIC COMPONENT OPERATION WITH HYDRAULIC SELECTOR SET IN MAIN POSITION (cont) - TM-9-2350-292-20-1_415

TM-9-2350-292-20-1 Carrier Ammunition Tracked M992A1(NSN 2360-01-362-3021) EIC:AE6 Manual
Page Navigation
370

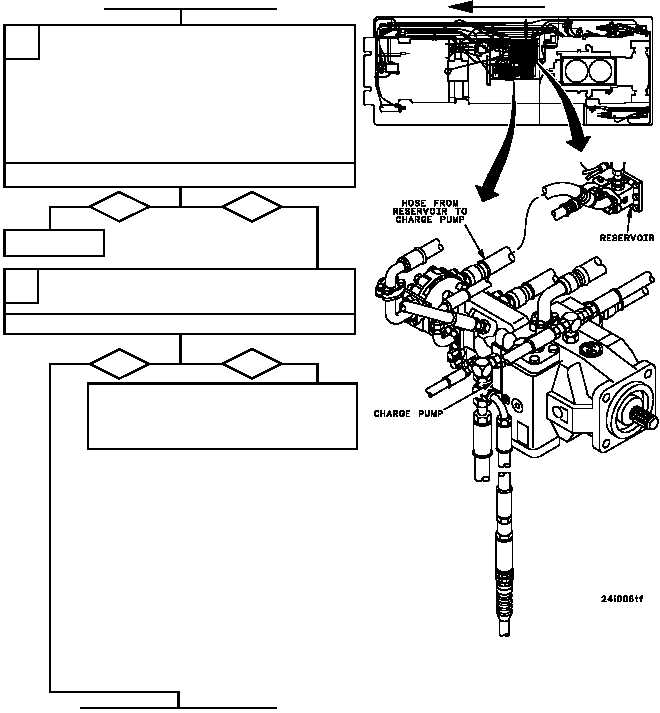

TM 9--2350--292--20--1 0089 00--8 SLOW OR NO HYDRAULIC COMPONENT OPERATION WITH HYDRAULIC SELECTOR SET IN MAIN POSITION -- CONTINUED 0089 00 CONTINUED ON NEXT PAGE Is pressure 80--140 psi? 1. Start the Enhanced Diagnostic Program (WP 0086 00) and select the corresponding symptom. 2. Start main engine, energize hydraulics, and set engine speed to 1800 rpm (TM 9--2350--292--10). Observe pressure at filter valve manifold port CH4. 3. Shut down hydraulics and main engine (TM 9--2350--292--10). no yes no yes N O Inspect hose from reservoir to charge pump for leaks, restrictions, and damage. Is hose free of leaks, restrictions, and damage? Go to Step R. Tighten leaking connections and remove restrictions. If restrictions cannot be re- moved or if hose is damaged, replace (WP 0583 00). Verify fault is corrected. CONTINUED FROM STEP A FORWARD
