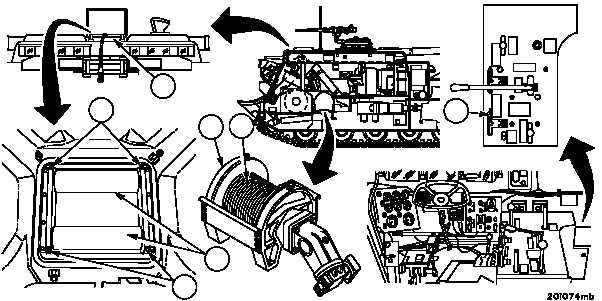

TM 9--2350--292--20--1 0187 00--97 0187 00 PREVENTIVE MAINTENANCE CHECKS AND SERVICES INCLUDING LUBRICATION INSTRUCTIONS -- CONTINUED TABLE 3 PREVENTIVE MAINTENANCE CHECKS AND SERVICES INCLUDING LUBRICATION INSTRUCTIONS, SEMIANNUALLY -- CONTINUED ITEM NO. NOT FULLY MISSION CAPABLE IF: PROCEDURE LOCATION ITEM TO CHECK/ SERVICE INTERVAL SEMIANNUALLY INTERIOR 15 Hoist Winch a. Park vehicle on a level surface (TM 9--2350--292--10). Always keep tension on wire rope when paying hoist winch out. Slack in wire rope may damage equipment. b. Operate hoist winch (1) and check action of winch drum (2) and controls (3). c. Check that rollers (4) on top of cable chute (5) turn smoothly. CAUTION Winch does not operate properly. Loose or damaged components. Clogged or missing grease fittings. Class III leaks. LUBRICANTS/ COMPONENTS REFILL CAPACITY EXPECTED TEMPERATURE* +40°F to --10°F (+4°C to --23°C) Above +32°F (Above 0°C) 0°F to --65°F (--17°C to --54°C) GREASE: Automotive and Artillery Grease, (GAA), MIL--G--10924 As Required *For Arctic Operation, refer to FM 9--207 ALL TEMPERATURES d. Lubricate rollers (4) with GAA through four fittings (6) until grease is visible. e. Wipe excess grease with rag (item 7, WP 0716 00). 4 5 1 2 3 6 6
