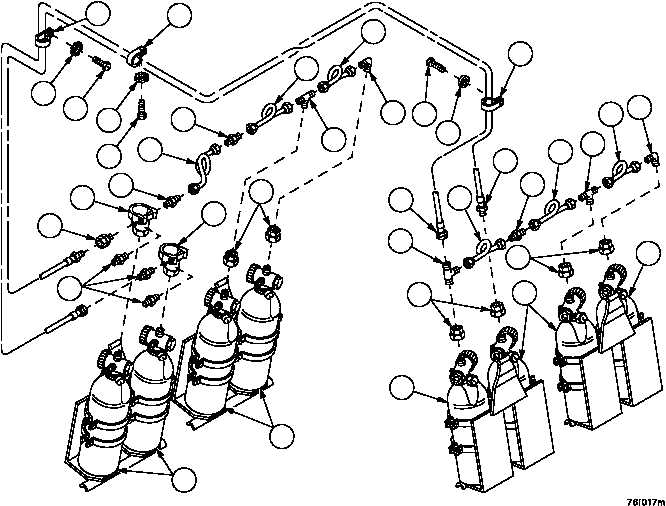

TM 9--2350--292--20--20703 00--2FIXED FIRE EXTINGUISHER CYLINDER AND LINES REPLACEMENT --CONTINUED0703 00Removal--Continued2. Remove eight screws (3), eight lockwashers (4) and eight clamps (5). Discard lockwashers.3. Remove four screws (6), four lockwashers (7), four clamps (8), disconnect two hoses (9 and 10) from four cylin-ders (2). Discard lockwashers.4. Disconnect two interconnecting tubes (11) from two unions (12), adapter (13) and tee (14).5. Disconnect two interconnecting tubes (15) from two unions (12) and two tees (16).6. Disconnect two interconnecting tubes (17) from two tees (16) and two elbows (18).7. Remove four adapters (13) and coupling (19) from two control valves (20).8. Remove tee (14), two tees (16) and two elbows (18) from five heads (21).9. Remove six heads (21) from six cylinders (2).Figure 37133445567891022222111112121314151516161717181813192020212121
