FIXED FIRE EXTINGUISHER CYLINDER CAP RETAINING ASSEMBLIES
REPAIR
0705 00
THIS WORK PACKAGE COVERS:
Disassembly, Assembly
INITIAL SETUP:
Tools and Special Tools
General mechanic’s tool kit (item 1, WP 0717 00)
Disassembly
1. Remove clamp (1) from cylinder (2).
2. Remove two plugs (3 and 4) from clamp (1).
3. Remove two caps (5 and 6) from clamp (1).
4. Inspect parts for damage and replace as required.
Assembly
1. Install two caps (5 and 6) on clamp (1).
2. Install two plugs (3 and 4) on clamp (1).
3. Install clamp (1) on cylinder (2).

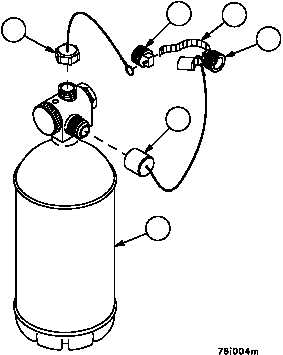

Figure 372
1
2
3
4
5
6
END OF TASK
0705 00--1/2 blank
