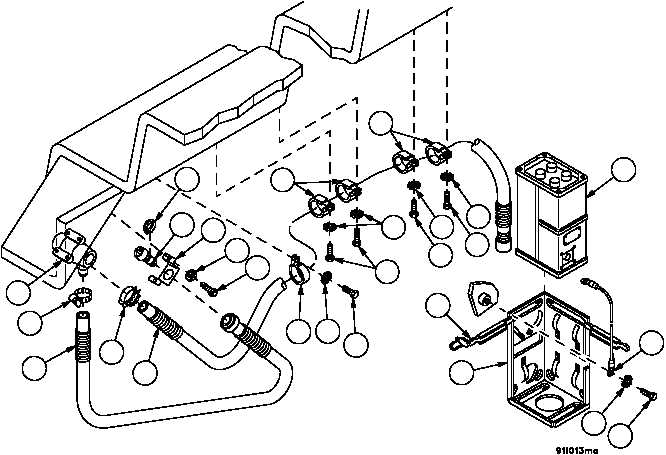

TM 9--2350--292--20--20706 00--3M2A2 GAS PARTICULATE FILTER UNIT (GPFU), HOSE ASSEMBLIES,FRAME ASSEMBLIES, BRACKETS, LEAD ASSEMBLY 4W303 ANDASSOCIATED HARDWARE REPLACEMENT -- CONTINUED0706 00Removal--Continued8. Open catch (14) on frame assembly (15), remove M2A2 gas particulate filter unit (3) from frame assembly (15).9. Remove four screws (16), four lockwashers (17), lead assembly 4W303 (6) and frame assembly (15) from ve-hicle. Discard lockwashers.10. Remove five screws (18), five lockwashers (19) and five clamps (20) securing hose assembly (13) to right side ofvehicle. Discard lockwashers.11. Remove hose clamp (21) and hose assembly (13) from M3 air heater (22), remove hose assembly (13) from ve-hicle. Discard hose clamp.12. Remove hose clamp (21) and hose assembly (23) from M3 air heater (22), disconnect other end of hose assem-bly (23) from orifice connector (24). Discard hose clamp.13. Remove two screws (25), two lockwashers (26), bracket (27) and orifice connector (24) with retaining ring (28).Discard lockwashers.WARNING14. Remove retaining ring (28) from orifice connector (24). Discard retaining ring.Figure 3731617614153222123211328272625241819202020191818181919
