AUXILIARY POWER UNIT HYDRAULIC PUMP REPAIR (HATZ) -- CONTINUED
0548 00
Installation--Continued

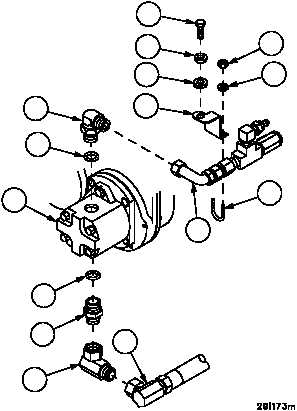

6. At the input port of the hydraulic pump (17), install new preformed packing (16) and adapter union (15).
7. Install tube elbow (14) on adapter union (15).
8. Install tube elbow (13) on tube elbow (14).
9. At the output port of the hydraulic pump (17) install new preformed packing (20) and elbow (19).
10. Install tube elbow (18) with attached fittings on elbow (19).
11. Install bracket (9) with screw (10) new lockwasher (11) and flat washer (12) on APU assembly.
12. Install U--bolt (8) and secure to bracket (9) with two nuts (6) and two new lockwashers (7).
