TM 9-2350-238-34-2

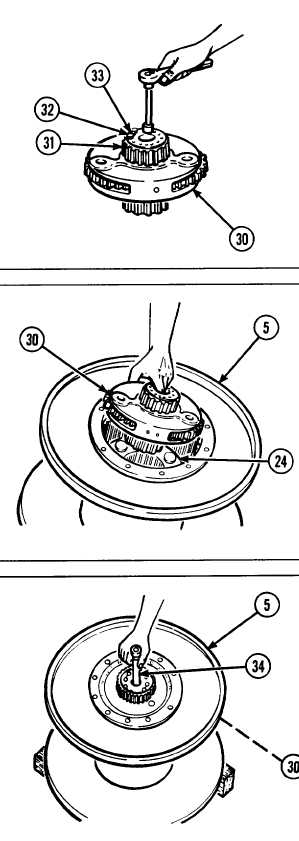

19 Install carrier brake spur gear (31) on
stage one carrier assembly (30) and
secure with 12 machine bolts (32) and
new Iockwire (33).
20 Install stage one carrier assembly (30) in
motor end of planetary winch drum (5).
Turn stage one carrier assembly until it
aligns with stage two carrier assembly
(24) and drops into place.
21 Install carrier brake rod (34) through all
carrier assemblies inside planetary winch
drum (5) until it seats in stage one car-
rier assembly (30).
2-127
